Direct driven air compressor
100% copper,full power, longer motor life, more energy saving
Category:
Direct-driven air compressor
E-mail：
- DESCRIPTION
- TECHNICAL DATA
- APPLICATIONS
- PRODUCTION&PACKING
-
- Commodity name: Direct driven air compressor
100% copper,full power, longer motor life, more energy saving
● 100% copper,full power, longer motor life, more energy saving
● High efficiency cooling,easy operation,high performance
● Direct driven air compressor is a new generation of mechatronic product which makes motor high efficient
● Portable, movable, light weight,easy to move with wheels and handle
● Pump/motor is fully shrouded to reduce noise
● Pressure switch with push button, safe and convenient
● It can be widely used in the field of home decoration engineering,road brighe painting & spraying,repairing and so on
● Ergonomic handle and removable rubber wheels make for easy moving and storageProduct Details

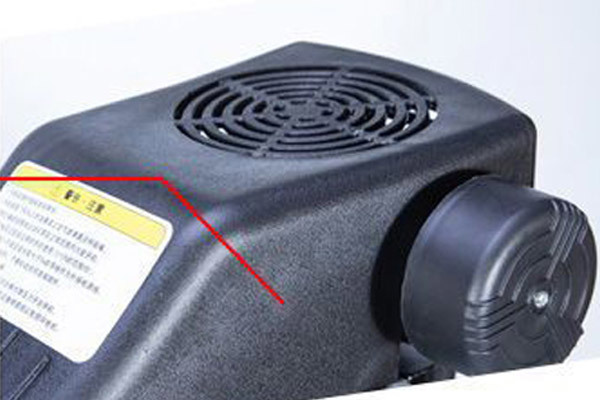

ELECTRIC MOTOR
The machine head is equipped with amachine head protective cover, whichcan effectively withstand hightemperature and avoid being coveredby dust, and better protect the machine.

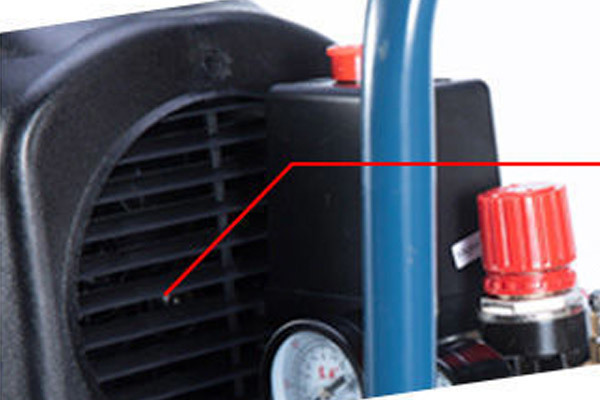

COOLING SYSTEM
Large-diameter heat dissipation holedesign, good heat dissipation system,fast heat dissipation, no machineburn-in, enhanced heat resistanceand extended service life.
SILENCER
Able to filter dust, sturdy and durable,can reduce noise while working for a long time
OIL LENS
The oil added cannot exceed the red point,nor can it be lower than the red point.When it is lower than the red point, add morebil.The oil added cannot exceed the red point,nor can it be lower than the red point.When it is lower than the red point, add more oil.

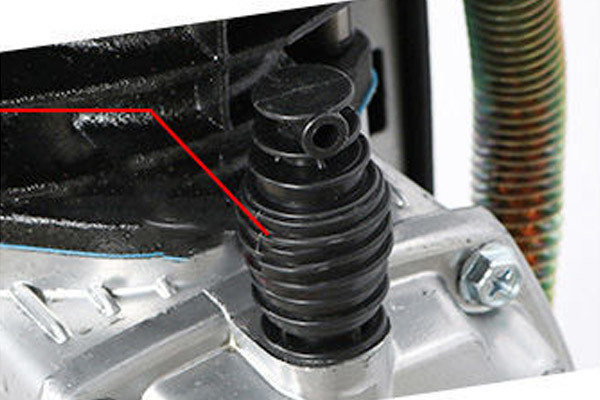

RESPIRATOR
First unscrew the breather, then pour oil intothe filler port, and then screw the breatherback (the transport oil plug must be removedbefore starting the machine)
START SWITCH
Start up (AUTO), close down (OFF), if thereis a sudden power outage during use, firstcontrol the pressure button to the off state,and then restart.

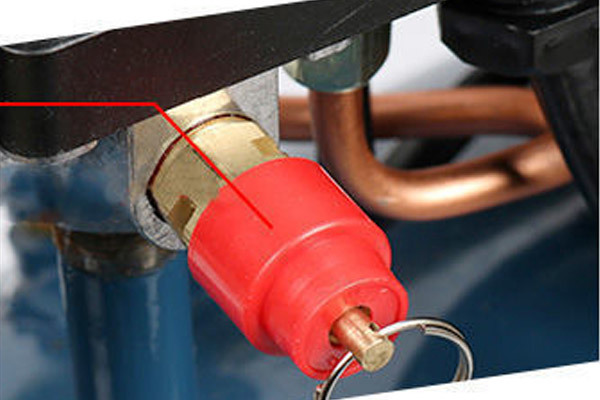

SAFETY VALVE
Equipped with a safety valve, it is safer to use.When the switch fails, it can automaticallyexhaust to ensure safe use.
ALL COPPER SCREW
lmpact-resistant and damage-resistantwith heat-dissipating steel sheets on the outside to prevent excessive temperature.

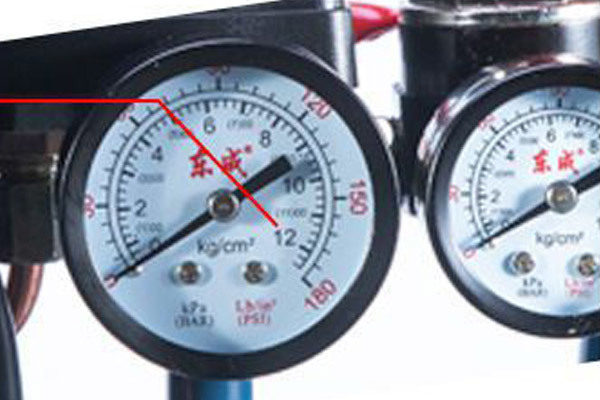

PRESSURE GAUGE
Pressure gauge (large): displays piggy bank pressure Pressure gauge (small): displays the operatingpressure of the air outlet, ensuring the safeoperation of supporting equipment
PRESSURE REGULATING VALVE
+:Increase pressure
-: Reduce pressure
BIG WHEEL
High-quality rubber plastic wheels, fixedwith screws, non-slip, easy to move and improve efficiency

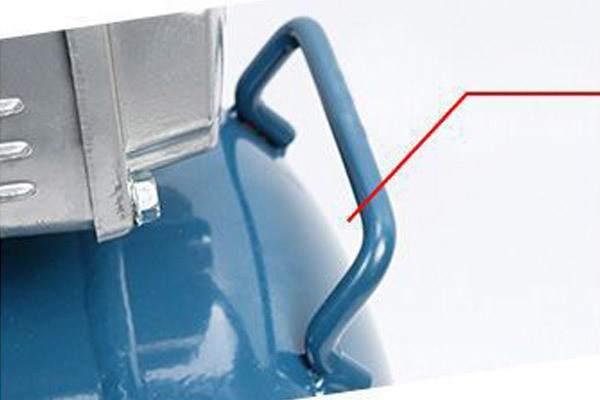

PULL TAB
Convenient,fast and efficient work
-
Model Motor Power Voltage Tank Weight Dimension JLT 750-9 0.75kw 1hp 220V 9L 14kg 47*21*47cm JLT 1500-18 1.5kw 2hp 220V 18L 20kg 58*27*60cm JLT 1500-24 1.5kw 2hp 220V 24L 22kg 58*27*60cm JLT 1500-30 1.5kw 2hp 220V 30L 24kg 58*27*65cm JLT 1800-40 1.8kw 2.5hp 220v 40L 30kg 67*29*64cm JLT 1800-50 1.8kw 2.5hp 220V 50L 27.5kg 68*31*66cm JLT 2200-50 2.2kw 3hp 220V 50L 32kg 68*31*68cm JLT 2200-50 2.2kw 3hp 220V 50L 40kg 69*34*62cm -
