Belt driven air compressor
Stable performance pump and motor to guarantee the longevity of air compressor.our motor are with thermal protection systerm.
Category:
Belt-driven air compressor
E-mail：
- DESCRIPTION
- TECHNICAL DATA
- APPLICATIONS
- PRODUCTION&PACKING
-
- Commodity name: Belt driven air compressor
Stable performance pump and motor to guarantee the longevity of air compressor.our motor are with thermal protection systerm.
1 Stable performance pump and motor to guarantee the longevity of air compressor.our motor are with thermal protection systerm.
2 100% factory tested at full pressure to make sure the reliability and safety of each product before shipment.
3 Metal cover for protecting the belt and wheels
4 Cast iron cylinder for strength and durability.
5 Spheroidal graphite cast iron crankshafts for maximum strength.
6 Low vibration for smooth operation.
7 Intelligent microcomputer controller available to make your air compressor much convenient, safety and intelligent.
Product Details

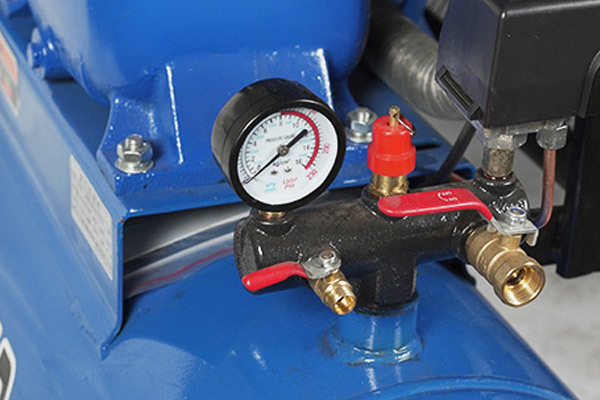

Pressure Gage
lt shows the pressure accuratelyand clearly
Safety Valve
Open and shut off automaticallyaccording to the pressure ensurethe 100% safe working pressure

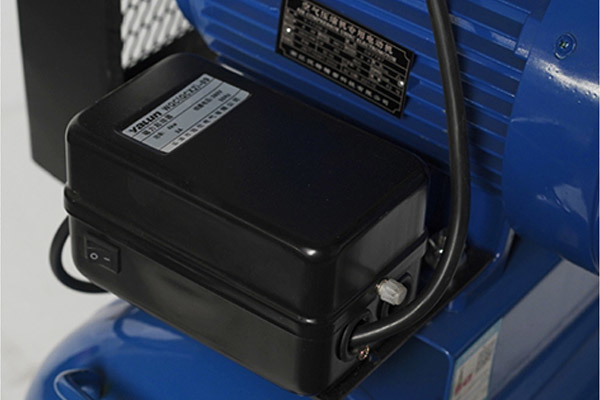

Magnetic Force Protector
Protection measures should betaken when the motor is in theunbalanced state of short leakageover and over load phase
Original Pump Head
Fast air intake, high efficiency,durable, sustainable use morethan a few times
-
Model Motor power Voltage Pressure Air displacementTank Weight (kw) (V) (mpa) (M/min) L (Kg) 0.036/ 8 single phase 0.75 220 0.8 0.036 40 40 0.12/ 8 single phase 1.1 220 0.8 0.12 45 45 0.17/ 8 single phase 1.5 220 0.8 0.17 56 50 0.25/ 8 three phase 2.2 380 0.8 0.25 70 60 0.25/ 8 single phase 2.2 220 0.8 0.25 70 60 0.25/12.5 three phase 2.2 380 1.25 0.25 70 60 0.25/12.5 single phase 2.2 220 1.25 0.25 70 60 0.36/ 8 three phase 3 380 0.8 0.36 90 75 0.36/ 8 single phase 3 220 0.8 0.36 90 75 0.36/12.5 three phase 3 380 1.25 0.36 90 75 0.36/12.5 single phase 3 220 1.25 0.36 90 75 0.6/ 8 three phase 4 380 0.8 0.6 110 85 0.6/ 8 single phase 4 220 0.8 0.6 110 85 0.6/12.5 three phase 4 380 1.25 0.6 110 85 0.6/12.5 single phase 4 220 1.25 0.6 110 85 0.9/ 8 three phase 7.5 380 0.8 0.9 160 130 0.9/12.5 three phase 7.5 380 1.25 0.9 160 130 1.0/ 8 three phase 7.5 380 0.8 1.0 230 170 1.0/12.5 three phase 7.5 380 1.25 1.0 230 170 1.05/ 8 three phase 7.5 380 0.8 1.05 300 230 1.05/12.5 three phase 7.5 380 1.25 1.05 300 230 1.05/ 16 three phase 7.5 380 1.6 1.05 300 230 1.6/ 8 three phase 11 380 0.8 1.6 360 300 1.6/12.5 three phase 11 380 1.25 1.6 360 300 -
Production Process
Product Packaging
Exhibitions and Customers
